The Technology Stack
Raven's Eye deploys military-grade encrypted communications, TAKOS/ATAK situational awareness, and Trellisware mesh networking — extending operational radius far beyond conventional drone operations.
Encrypted Communications
Every link in the chain is secured. From drone to EUD to command center, all data flows through AES-256 encrypted channels — no interception, no compromise.
Trellisware Mesh Networking
Self-forming. Self-healing. No infrastructure required.

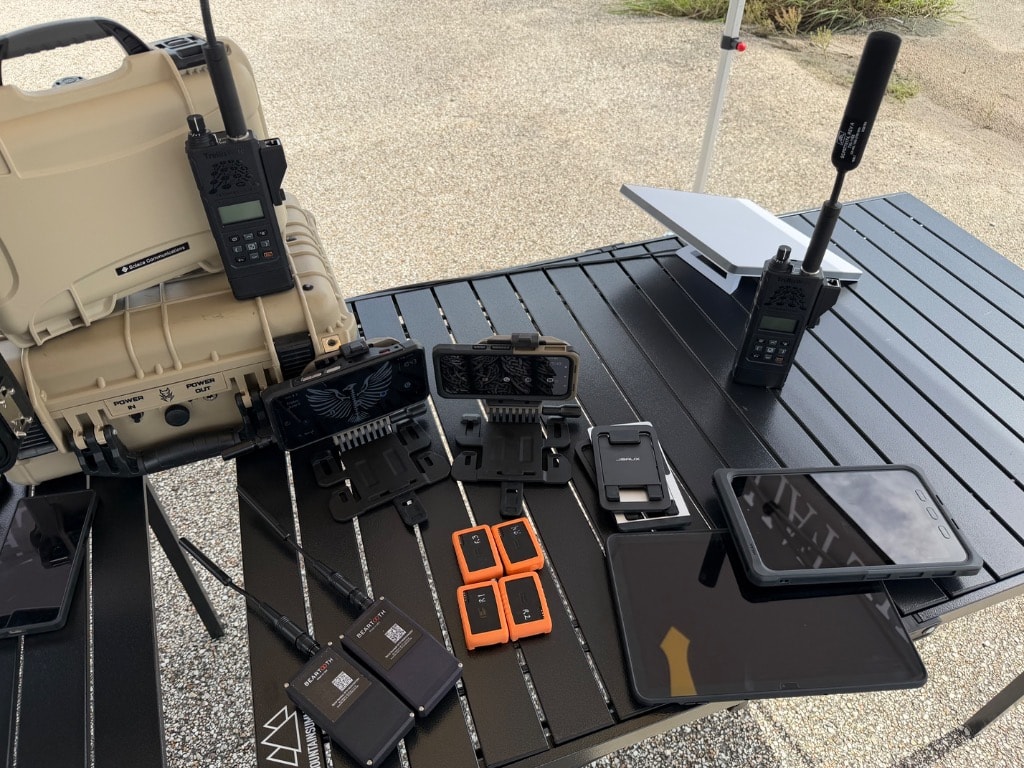

Trellisware TW-750 TSM radios create an autonomous mesh network the moment they power on. Each node — whether on a drone, a ground operator, or a vehicle — automatically discovers peers, establishes encrypted links, and routes data around failures. The network heals itself if a node goes down or moves out of range.
- Self-forming mesh — no pre-configuration or infrastructure needed
- Self-healing routing — automatically reroutes around failed or jammed nodes
- Airborne relay — drone-mounted radios extend network range by kilometers
- GPS-denied operation — mesh maintains connectivity without GPS
- ATAK/CoT integration — all nodes share blue force tracking and sensor data
- Simultaneous voice, video, and data on a single encrypted link
TAKOS & ATAK Integration
One picture. Every operator. Total awareness.

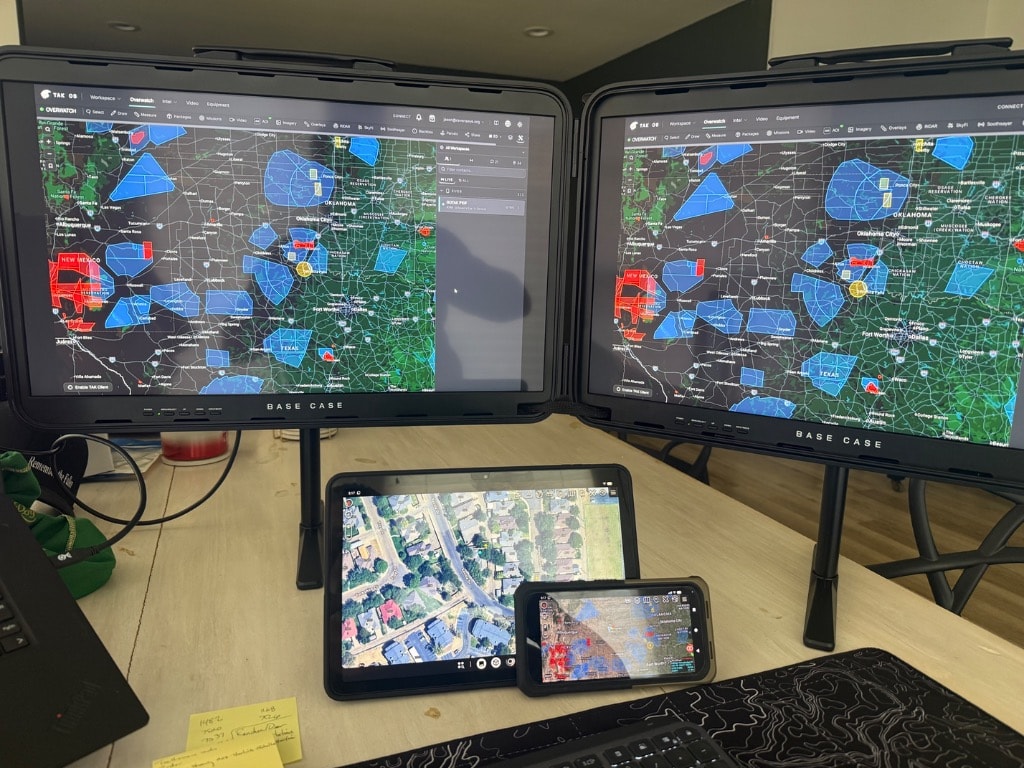

TAKOS (Team Awareness Kit Operating System) and ATAK (Android Team Awareness Kit) provide the command-and-control backbone for every Raven's Eye deployment. Drone feeds, EUD positions, sensor overlays, and mission data converge on a single tactical display — giving every operator from the drone pilot to the incident commander the same real-time picture.
Blue Force Tracking
Real-time positions of all friendly units overlaid on the tactical map — drone, ground teams, and command all visible simultaneously.
Live Drone Feed Overlay
Thermal and visible drone video streams directly into the ATAK display, georeferenced to the map for instant target location.
Cursor-on-Target (CoT)
Standardized CoT data sharing enables interoperability with any CoT-compatible system — military, law enforcement, or emergency management.
Mission Planning & Tasking
Waypoint tasking, search grid planning, and route deconfliction built directly into the ATAK interface — plan and execute from the same screen.
Sensor Data Fusion
Thermal detections, radar contacts, and EUD reports fused into a single common operating picture with timestamps and confidence ratings.
Offline Capability
Full ATAK functionality without internet connectivity — maps, tracks, and mission data persist in GPS-denied and comms-degraded environments.
Extended Operational Radius
Trellisware mesh networking combined with Starlink backhaul removes the traditional range ceiling on drone operations.
Standard drone-to-controller direct video and telemetry link. Full HD thermal feed, lowest latency.
Trellisware airborne relay node extends the operational network. Ground teams maintain ATAK connectivity throughout.
Daisy-chained Trellisware nodes across vehicles and fixed positions extend the mesh to regional scale.
Starlink terminal provides global IP connectivity — command centers anywhere in the world receive live feeds and CoT data.
Full Technology Stack
Android and Windows Team Awareness Kit for real-time situational awareness, mission planning, and tactical coordination across all EUDs.
Team Awareness Kit Operating System — the software layer that manages ATAK plugins, data feeds, and device management across the entire network.
Self-forming, self-healing mesh radio networks that maintain encrypted communications in GPS-denied and RF-contested environments.

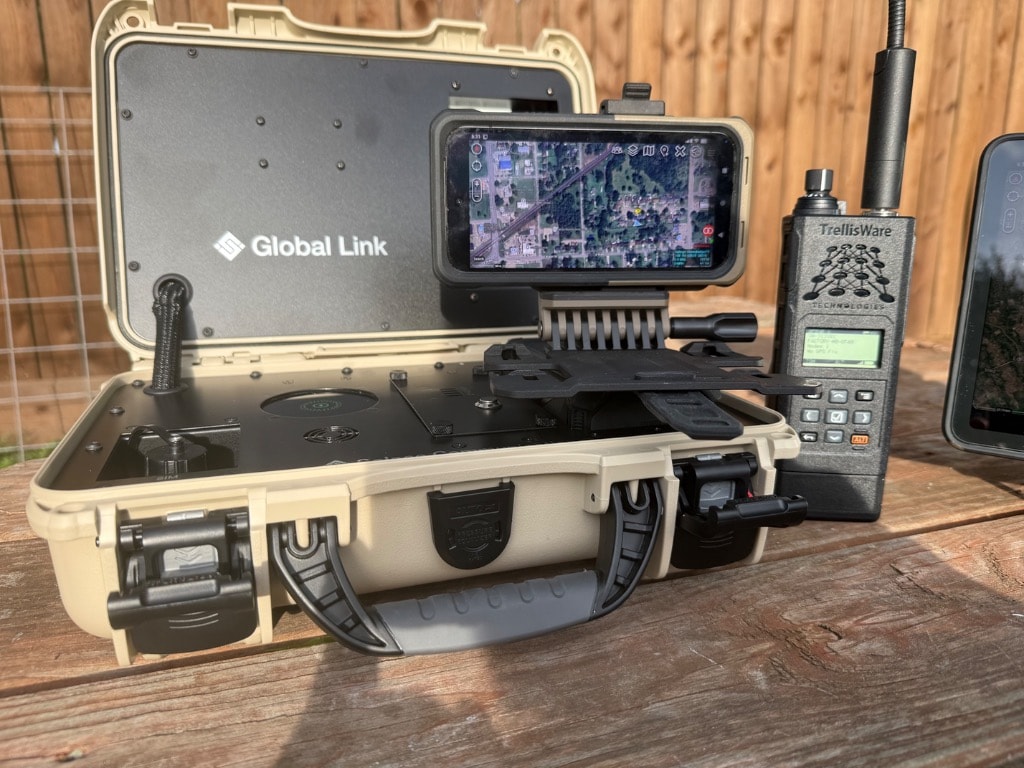

Ruggedized end-user devices running ATAK for field operators — providing blue force tracking, sensor feeds, and mission data at the edge.
Low-latency satellite internet via SpaceX Starlink providing global connectivity for remote operations where terrestrial networks are unavailable.
See It in Action.
Request a technical briefing to see how Trellisware, TAKOS, and our drone platforms integrate into your existing operations.
